Bay Window Measuring

Back to bay windows page

Continuous Curve Bay Window submission form

If you would like to enquire about bay window curtain poles we can give you an indication of price if you fill in the form below. Add any relevant comments in the box provided. Resubmit the form as many times as necessary if you require more than one bay of each type to be calculated. Input all dimensions in whole millimetres only. If you have measured in units other than millimetres you can convert them here. All dimensions must be filled in (pole returns are optional). If you do not have all measurements but would like an estimated price, please use the price calculator.

Don't forget to supply email address (phone number optional) so we can contact you.

Please refer to previous page for information on measuring bay windows and collecting dimensions.

When we have calculated the bay window pole position we will send you the price estimate and the diagrams to confirm. Once confirmed we can proceed with your order.

Please note:

  • This measuring diagram is intended for bays with curved walls. If you would like to enquire about having a curved pole in a bay with straight, faceted walls, please use a measuring diagram that matches your bay type and request a curved pole in the comments box.
  • Continuous curve poles are presently only available in 16mm diameter bar.

Please note that we are currently experiencing some problems receiving the submitted forms, so for now we would recommend emailing your measurements and information directly to us at info@northdownsironcraft.co.uk

We will process your enquiry in exactly the same way as long as we receive all the information as set out in the form below. Apologies for the inconvenience.

Continuous curve bay

Continuous curve bay

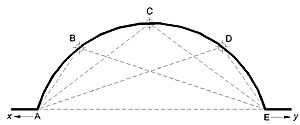

Mark a point at the centre of the bay curve (C), then mark points halfway between A and C (B) and C and E (D). Measure distances AB, AC, AD, AE, EB, EC, ED. Measure only diagonal distances, do not measure the length of the wall directly.

If additional pole returns are required, please indicate lengths at Ax and Ey. Finial lengths will be included in this unless stated.


AB =
AC =
AD =
AE =
EB =
EC =
ED =
Pole return Ax =
Pole return Ey =
Finial choice
See finials
Holdback choice
See holdbacks
Finish choice
Pole ends configuration
what's this?
Pole diameter
16mm only for curved poles
Bracket fixing
Pole projection from wall
what's this?
Curtain rings
Pole hanging depth what's this?
Please submit comments here
